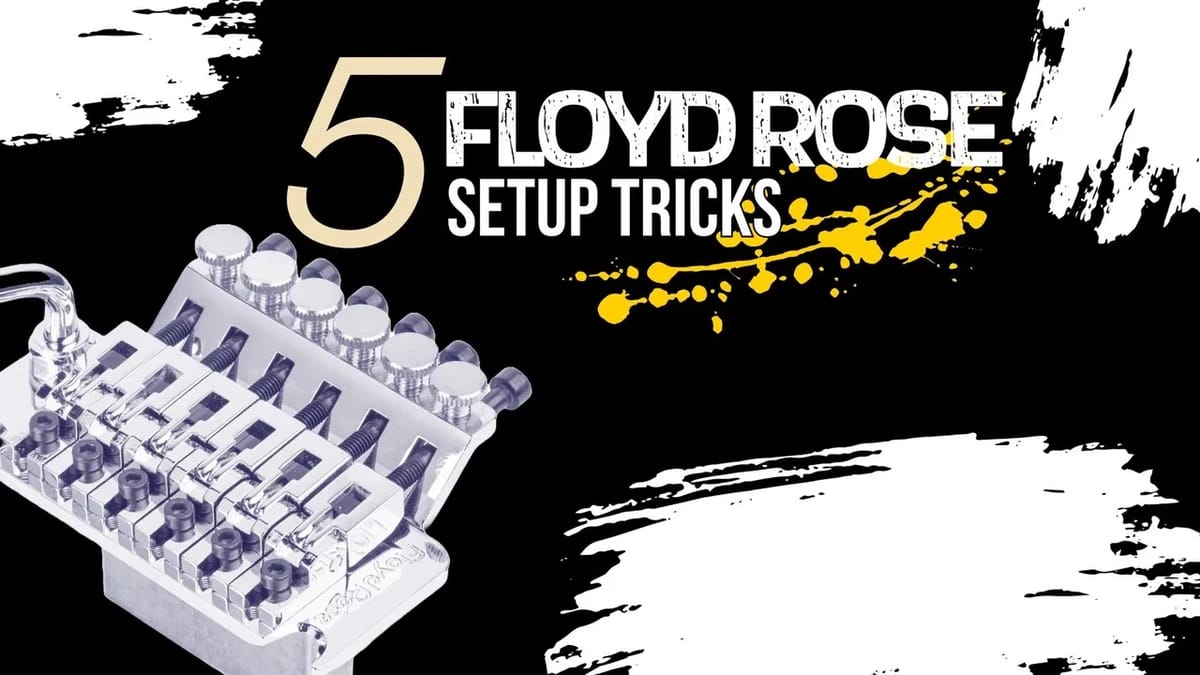

How to Set Up a Floyd Rose: 5 Must-Know Tips

You're not alone if you’ve ever heard someone talk about how tough it is to set up or restring a Floyd Rose tremolo.

Many guitarists feel it’s a long and tricky process, and it can seem like you’re just going in circles trying to get it right. But with the right tips, setting up your Floyd Rose doesn’t have to be such a hassle.

Here are five simple tips to make the process easier and frustration-free.

1. Tilt the Bridge Forward—Just a Bit

The Floyd Rose manual states that the bridge should be parallel to the guitar body, but I break this rule.

One of my biggest influences in guitar building and general luthiery was the trailblazing innovator James Tyler.

This was one of the setup items he did on every James Tyler guitar. It’s No. 13 on his setup checklist and is still used at James Tyler today.

You can check out the amazing Rich Renken, General Manager of James Tyler Guitars, going through Jim’s “must do” guitar setup checklist in a video from 2023.

I chatted with Rich about this recently to find out what James had discovered that led him to make this slightly forward bridge tilt part of his setup process.

Rich recalled that Jim found it to give the tremolo a "memory.” The metaphor Rich used was that of tilting in a chair: you're perfectly parallel to the ground, or it could go either way (back or forward). But if you're slightly tilted forward and let go of your feet, you will fall forward. So that slight tilt gives it the “memory.”

He added that the slight forward tilt added a “pullback” to the setup. Other experienced players and guitar techs have backed up Jim’s philosophy about the bridge and the benefits of a forward tilt.

Much of the reasoning lies in balancing the tension between the strings and the springs. When you slightly tilt the bridge forward, it’s easy to see how you allow for a more responsive return to the neutral position after using the tremolo bar, particularly for players who dive bomb or frequently manipulate pitch.

This can help reduce friction and improve overall tuning stability by allowing a smoother pitch return due to the slightly altered bridge angle.

Some guitar techs have even suggested that this forward tilt can reduce the stress on the bridge components, making it easier for the guitar to stay in tune after aggressive playing. It’s especially useful for players who prefer the feel of a floating bridge but want to mitigate some of the common tuning issues associated with it​

Ultimately, the setup is highly individual. Whether you prefer a flat or slightly angled bridge, the key is to experiment and find what works best for your playing style and, most importantly, stay in tune with it.

2. Double-Check for Movement at the Nut

Press behind the strings and listen for any pitch changes after locking the strings at the nut. If the pitch shifts, something’s off, and the clamps might not be holding the strings tightly enough.

A few things can cause movement, and fixing them will keep your Floyd Rose in tune.

Common Issues and Solutions:

• String Placement: Ensure each string sits properly and is flush within the nut. If it doesn’t, the string won’t clamp down properly, causing slippage.
• Worn Nut Grooves: Over time, the nut grooves can wear down, making it harder to grip the strings. If this happens, replace the nut.
• Misaligned Clamps: The clamps should apply even pressure across the strings. If they’re misaligned, they won’t do their job properly.
• Loose Screws: Check that the clamping screws are tight. This doesn’t mean overtightening to the point where you may even damage the strings or the threads in the nut, but enough to do the proper job.
• Dirt or Debris: Any buildup in the nut grooves can prevent the strings from locking in place. Clean the nut regularly to avoid this. If you notice a weird sitar sound coming from one or many strings, the nut is also the best place to check first.
• Retainer Bar Adjustment: If your guitar has a retainer bar, make sure it applies even pressure across all strings to guide it into the nut. This is most important when the string may be lying flush with the nut at the front, but as it approaches the back part of the nut, it starts to lift up. Flush front to back is the goal!

3. Keep Minimal Windings on the Tuning Pegs

A common mistake when restringing any guitar is winding too much string around the tuning pegs.

Stick to just one or one-and-a-half wraps of string around the tuning peg.

Too much slack in the windings leads to many issues, such as the nut not being locked.

Think of it this way, on a guitar that does not have a locking nut but a floating tremolo system:

The more string that is wrapped around the tuning peg, the more that will unravel as you go for that div,e and then has to tighten back up around the tuning peg when it’s brought back to pitch.

4. Tighten the Intonation Screws

Getting your intonation right is key to keeping your guitar in tune across the fretboard.

Floyd Rose bridges have small screws on the saddles that let you adjust the intonation. But if you don’t tighten these screws after adjusting, your guitar might fall out of tune.

Why It’s Important:

• Loose Screws Cause Instability: If the intonation screws are loose, the saddles can shift, mess with your tuning, and cause the strings to slip.
• Recheck After Setup: After adjusting the intonation, always double-check that the screws are tight to prevent them from loosening over time.
• Consistency in Tuning: Tightening these screws locks everything in place, ensuring stable tuning across all strings.

Professional guitar techs always emphasize the importance of tightening these screws during setup.

5. Stretch Your Strings

Stretching those strings when restringing a Floyd Rose (or any guitar with new strings) is an absolute must.

Without stretching, your strings will keep going flat while you play, forcing you to constantly retune. Proper stretching ensures they’re fully seated and ready to stay in tune.

How to Stretch Your Strings Correctly:

• Step 1: Pull each string gently. Don’t yank it so hard that you pull it from the bridge. A way to think about it is as if you were stretching it about a step up in pitch. This simulates the tension the strings go through while playing.
• Step 2: After stretching each string, tune it back to pitch.
• Step 3: Repeat this until the strings no longer go flat after stretching.

Don’t Overstretch: Stretching too much can damage the strings and the bridge, or simply pull the string from the bridge or the tuning peg. Keep it gentle and controlled.

Bonus Tip: Floyd Rose Bridge Is About Balance

Floyd Rose bridges rely on balanced tension between the strings and the springs in the back of the guitar.

Doing things properly is essential to get the best possible result from your guitar setup.

Follow these:

First: Set the Neck Relief: Adjust the truss rod to achieve the correct neck relief (the slight bow in the neck). This ensures your guitar’s action is playable and comfortable. Neck relief should be done first because adjustments will affect the string tension.

Second: Adjust the Bridge Height: Once the neck relief is set, adjust the bridge height to get the action where you want it. This involves raising or lowering the bridge saddles or the entire tremolo unit to match your playing style. Getting the bridge height dialed in is crucial before you touch the springs.

Last: Fine-tune the Springs: After setting neck relief and bridge height, you can tweak the tremolo springs. Tighten or loosen the springs to get the bridge to sit where you want relative to the body (we prefer it slightly tilted forward, remember?) The springs balance the string tension, so this final step ensures your bridge stays stable and returns to neutral after using the tremolo arm.

Following this order ensures that all parts of your setup work together smoothly and avoid unnecessary re-adjustments.

Final Thoughts

The beauty of the Floyd Rose is that it's highly customizable, and finding the right setup is more about what feels right for you.

Whether you want that bridge parallel to the body or slightly tilted forward, each approach can work depending on your style and preferences. Floyd Rose even mentions in their manuals that setups can differ based on factors like string gauge or playing habits.

Professional guitar techs agree—getting the perfect Floyd Rose feel is about trial and error, and what works for one player may need to be fine-tuned for another.

At the end of the day, the right setup is the one that feels great under your fingers and keeps your guitar in tune.
